What is the pad mount transformer?
A padmount or pad-mounted transformer is a ground-mounted electric power distribution transformer in a locked steel cabinet mounted on a concrete pad. Since all energized connection points are securely enclosed in a grounded metal housing, a padmount transformer can be installed in places that do not have room for a fenced enclosure. Padmount transformers are used with underground electric power distribution lines at service drops to step down the primary voltage on the line to the lower secondary voltage supplied to utility customers. A single transformer may serve one large building or many homes.
Pad-mounted transformers are made in power ratings from around 100 to around 5000 kVA and often include built-in fuses and switches. Primary power cables may be connected with elbow connectors, which can be operated when energized using a hot stick and allows for flexibility in repair and maintenance.
Core features
Compartmental available in live-front or dead-front design
Critical load designed with special attention to surge protection
Hardened data center designed with special attention to surge protection, providing superior performance under the most stressful electrical environments
Solar specifically designed for Solar Photovoltaic generator step-up (GSU) applications
Vacuum fault interrupter combines both voltage transformation and either transformer or loop overcurrent protection in one space-saving, money-saving package
Can be located near or inside buildings for greater flexibility and savings
Applicable places for pad mount transformers
- Used as street light pad-mounted transformer:

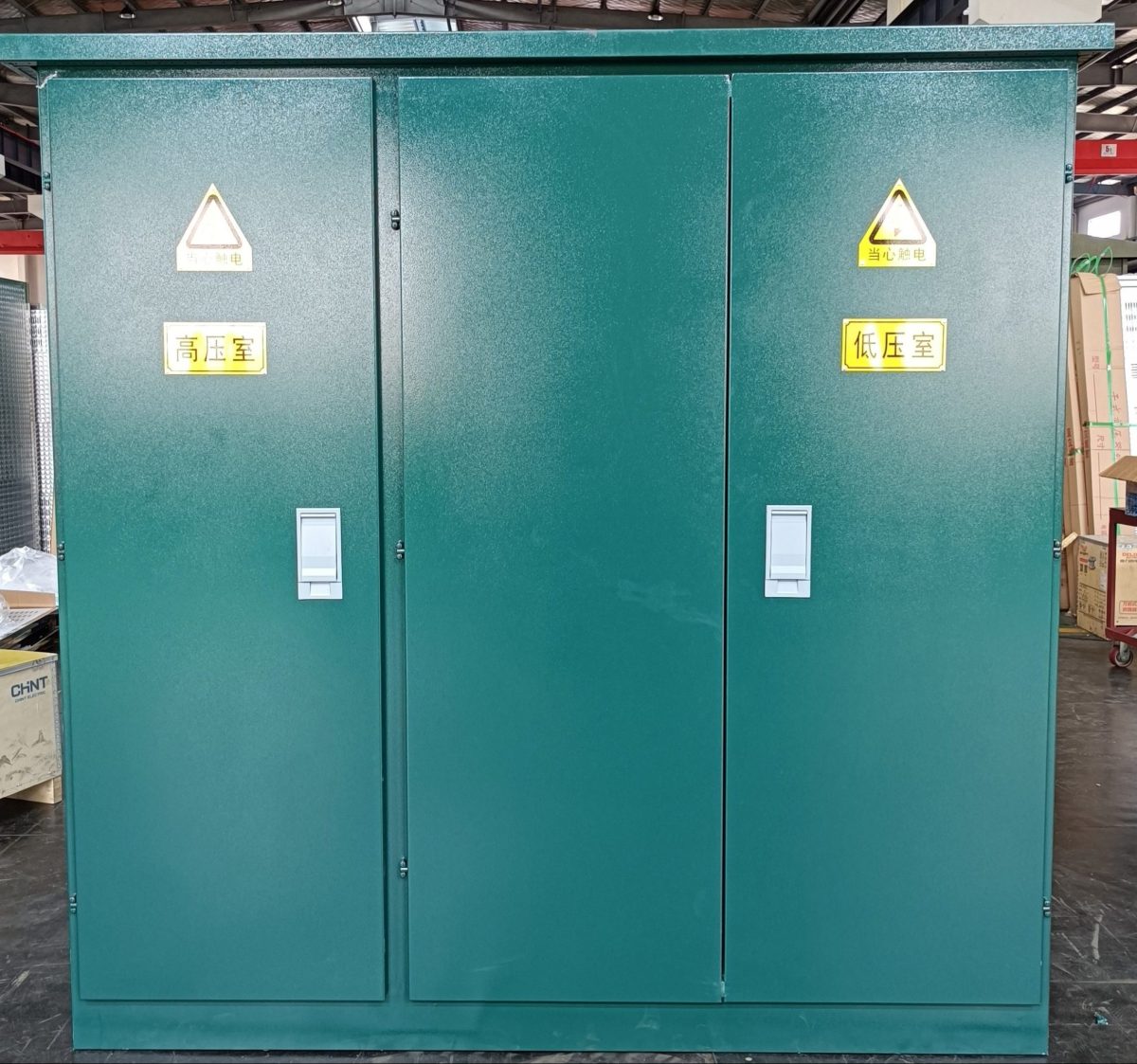

Both European-style pad-mounted transformer and American-style box transformers have advantages over traditional civil-construction power houses in small-load power systems. Because the cost of box-type substations is much lower than that of ordinary power rooms, the appearance is also very beautiful. European-style box substations can also use landscape-type casing, which is a beautiful scenery.
- Electricity consumption in parks and communities:
Box-type substations are often used to supply power in parks, communities and other places. Parks and communities often pursue beauty and space occupation. Box-type substations solve these two problems very well, with beautiful appearance and small footprint.
- Industrial and mining electricity consumption:
Factories, mines and other areas have high requirements for power supply equipment due to complex terrain and expensive time costs. The box-type substation is easy to install, requires less on-site construction, and has a protection level of IP33, which can greatly reduce the construction volume and construction period and can be installed in areas with complex terrain.
- Temporary electricity use:
Construction units often change the location of power consumption as the construction site moves, so they need a set of mobile power distribution equipment. Box-type substations have good mobility and large enough load capacity to fully meet the temporary power demand on the construction site.
Future of Pad Mounted Transformers
1.Technological Advancements
The future looks promising with technological advancements like smart monitoring systems, automation, and IoT integration.
2.Eco-Friendly Options
With a growing emphasis on sustainability, brands are investing in eco-friendly designs, such as oil-immersed transformers that minimize environmental impact.
3.Market Trends and Predictions
The market is likely to see a rise in demand, especially in emerging sectors like electric vehicle charging stations and renewable energy integration.
How long do they last?
Typically, a pad mount transformer will last an estimated lifespan of 30+ years.
Are they safe?
Any electrical equipment has the potential to be dangerous, but industry standards and safety practices at Nantong Dazheng make sure they are safe. There are safety precautions everyone should take around pad mount transformers.
How Long Does It Take to Get a Padmount Transformer?
Transformer manufacturing involves material procurement, production time and shipping, with lead times of up to 10 to 15 weeks once a production order is confirmed. Our management data shows signs of significant improvement in the supply chain outlook for 2023 compared to past years, so you can anticipate future delivery times.
Material sourcing is probably the biggest challenge in floor-standing transformer manufacturing. Obtaining high-quality core steel, aluminum or copper wire and oil for manufacturing is critical and is an important aspect of our production management. Considering the estimated delivery time of new floor-standing transformers, we usually arrange material procurement quickly after receiving the order, and arrange dedicated personnel to follow up to ensure timely delivery.
Conclusion
Summary of Key Points
Pad transformers are an important part of modern electrical systems. The Nantong Dazheng brand stands out for its quality, delivery speed, innovation and competitive pricing.
Customized transformers to meet every need
Offering a multitude of configurations and accessories to meet a wide range of application demands, Dazheng’s Cooper Power series three-phase pad-mount transformers are engineered-to-order and manufactured to exact customer specifications. Some models from stock are also available for emergency situations.
